CANHEAT 4D-CM
CANHEAT 4D-CM
A universal deployment system built on a forced-air diesel heating system, engineered for tactical tents and shelters. Compact, portable, and self-contained, it delivers fast, reliable heat wherever missions unfold.
• Complete field system with heater core, controller, and air duct
• Validated in arctic, alpine, and desert environments
• Single‑operator setup in under 5 minutes
• Up to 15 hours of run time from the integrated 7‑litre fuel tank

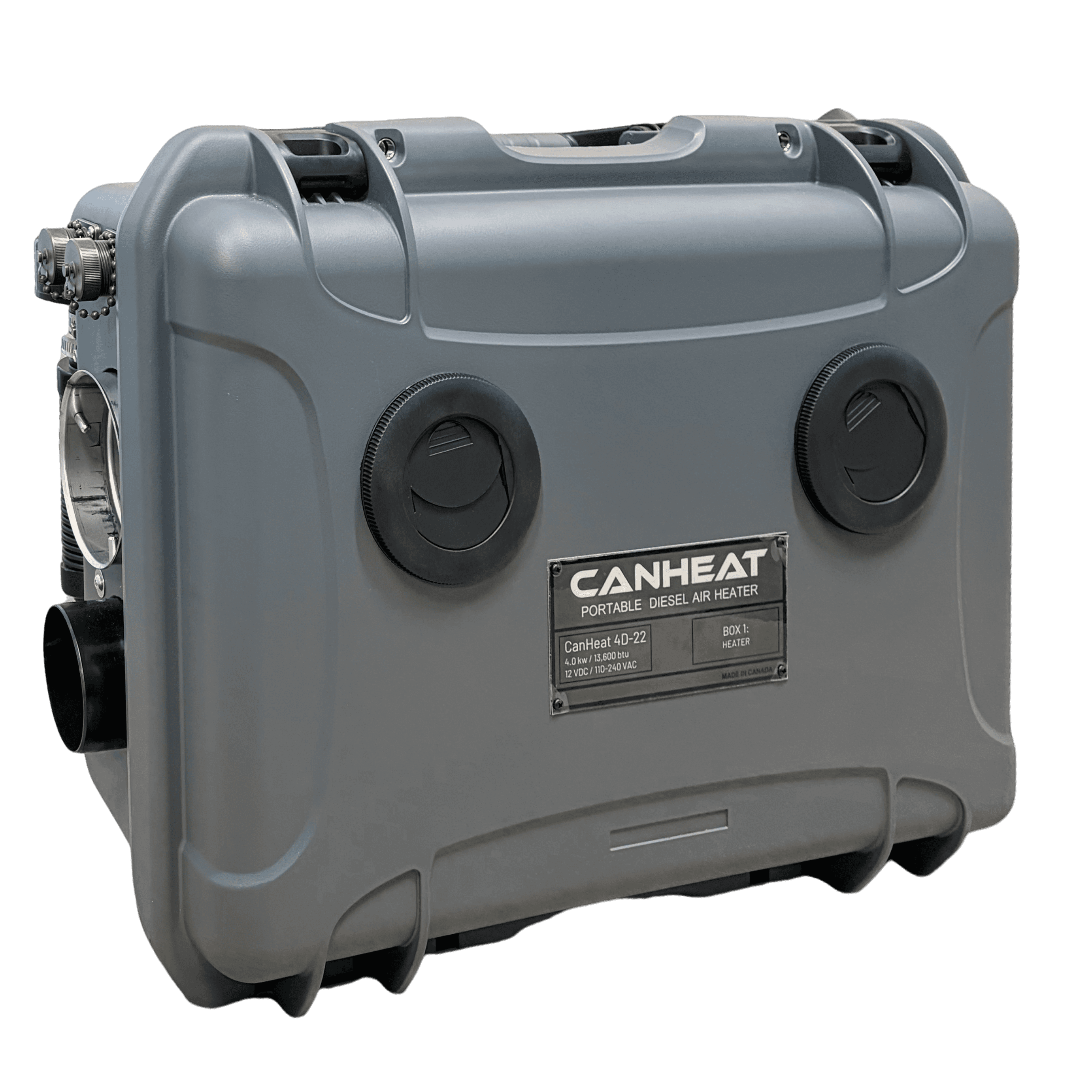

HEATER CORE
Canheat 4D

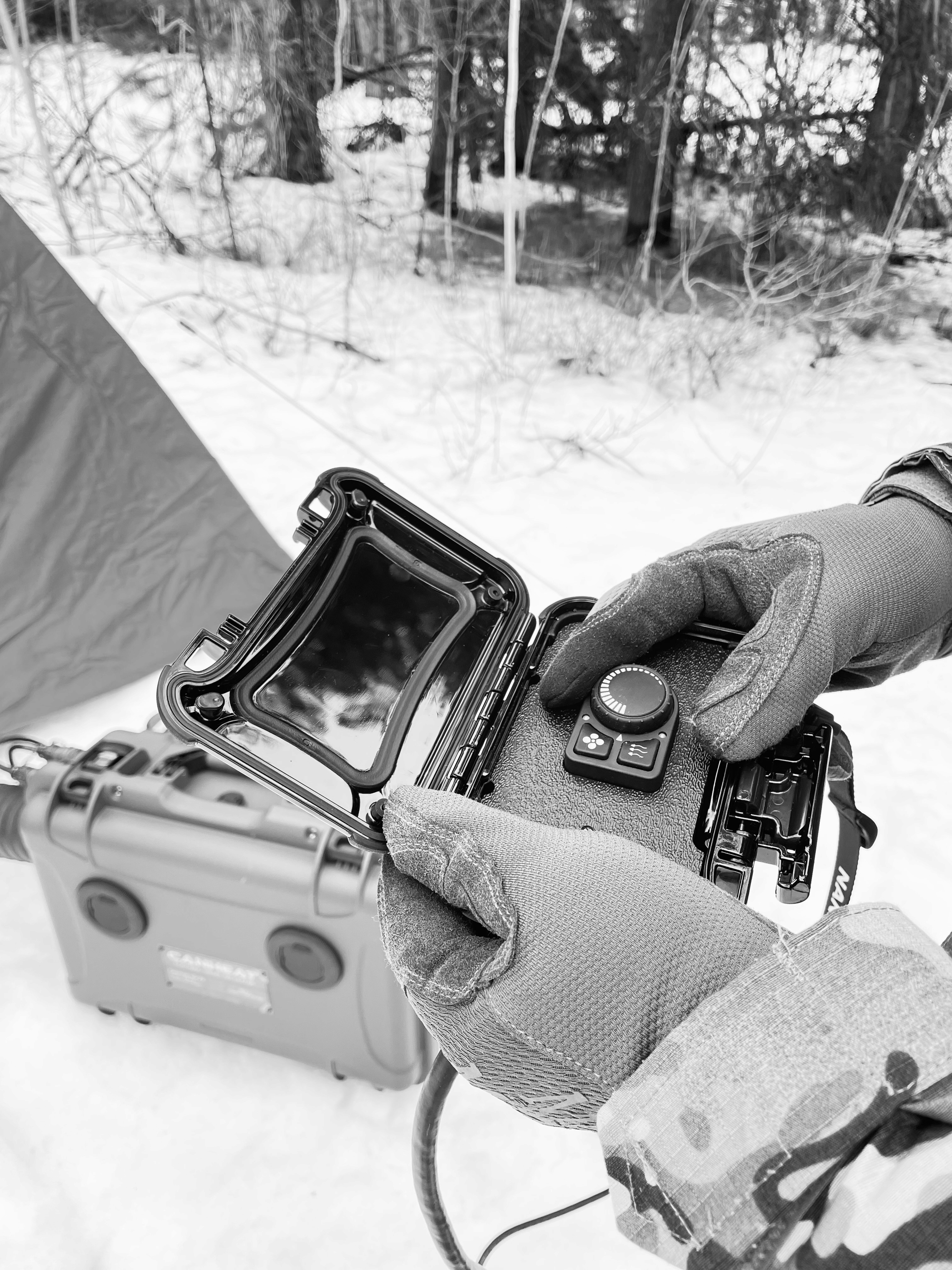

CONTROLLER MODULE
CM-5-10
HEATER CORE
Canheat 4D
CONTROLLER MODULE
CM-5-10
compact & portable
16kg man-portable
multi-source power
240 VAC, 12 VDC & BB-2590
flexible fuel options
diesel, kerosene, JP-8
stealthy & standalone
low heat & noise signature
compact & portable
15 kg man-portable
multi-source power
12 V DC /100–240 V AC
flexible fuel options
Diesel, Kerosene, JP-8
stealthy & standalone
low heat & noise signature
Engineered for Mission Endurance
Extreme All-Weather Build
Extreme All-Weather Build
Engineered for punishing field transport and deployment; ruggedized to operate reliably in Arctic, alpine, and desert conditions.
Engineered for punishing field transport and deployment; ruggedized to operate reliably in Arctic, alpine, and desert conditions.

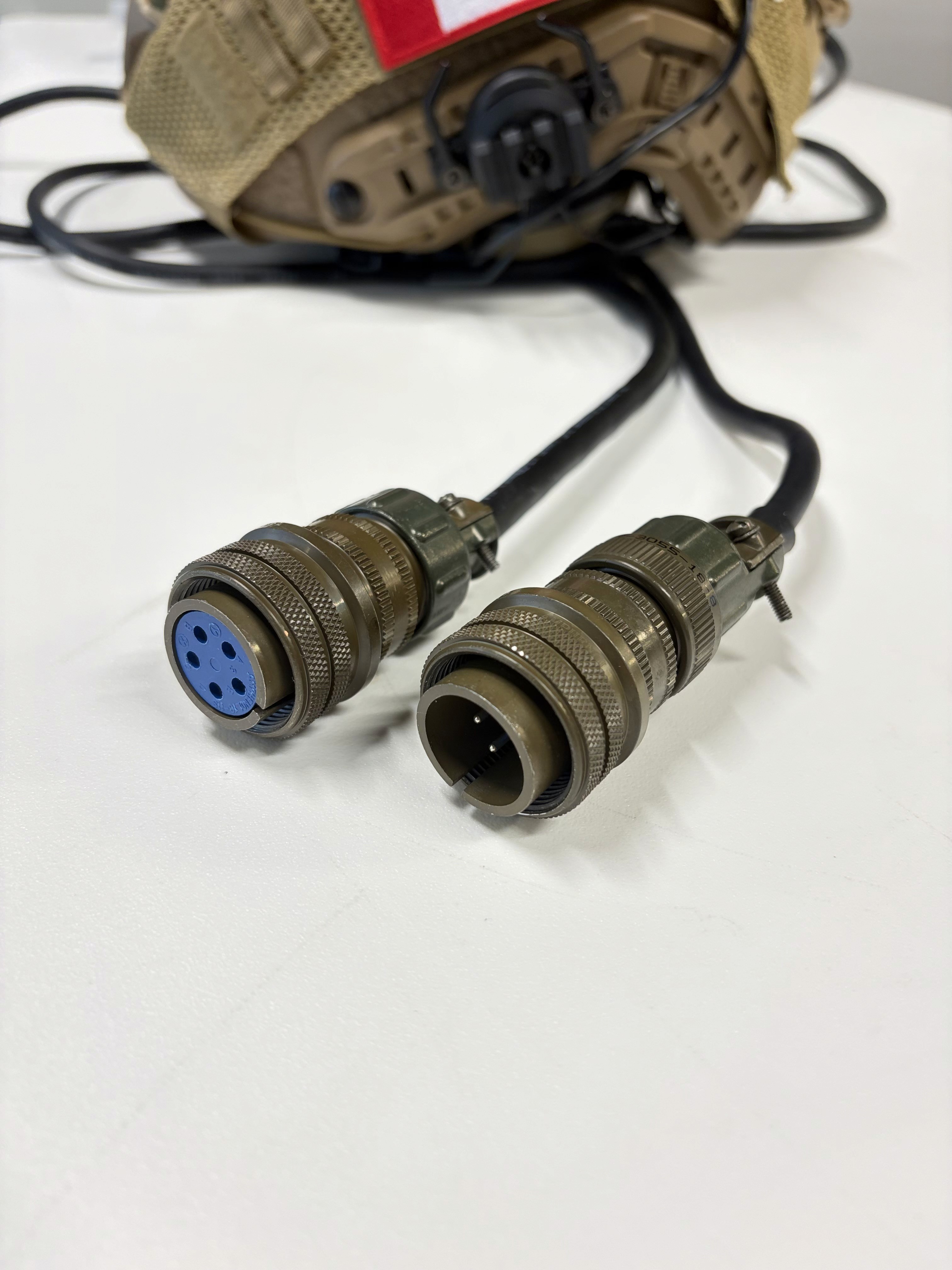

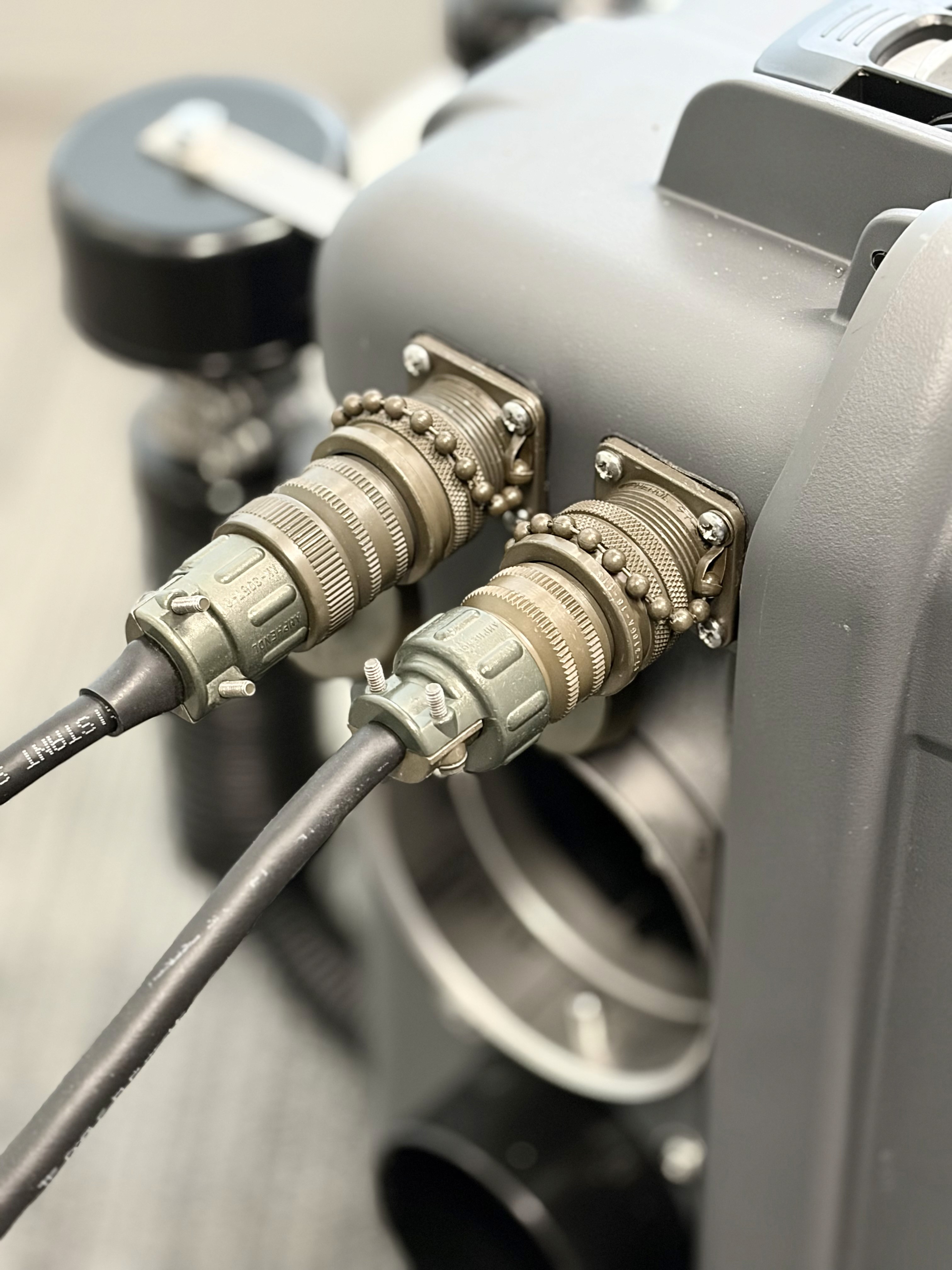

MIL-Spec Connectors
MIL-Spec Connectors
Sealed, ingress-protected connectors ensure secure, mission-ready power and control links in all environments.
Sealed, ingress-protected connectors ensure secure, mission-ready power and control links in all environments.
Arctic-Grade Cabling
Arctic-Grade Cabling
Heavy-duty cabling designed to maintain flexibility and performance under extreme cold, abrasion, and repeated handling.
Heavy-duty cabling designed to maintain flexibility and performance under extreme cold, abrasion, and repeated handling.

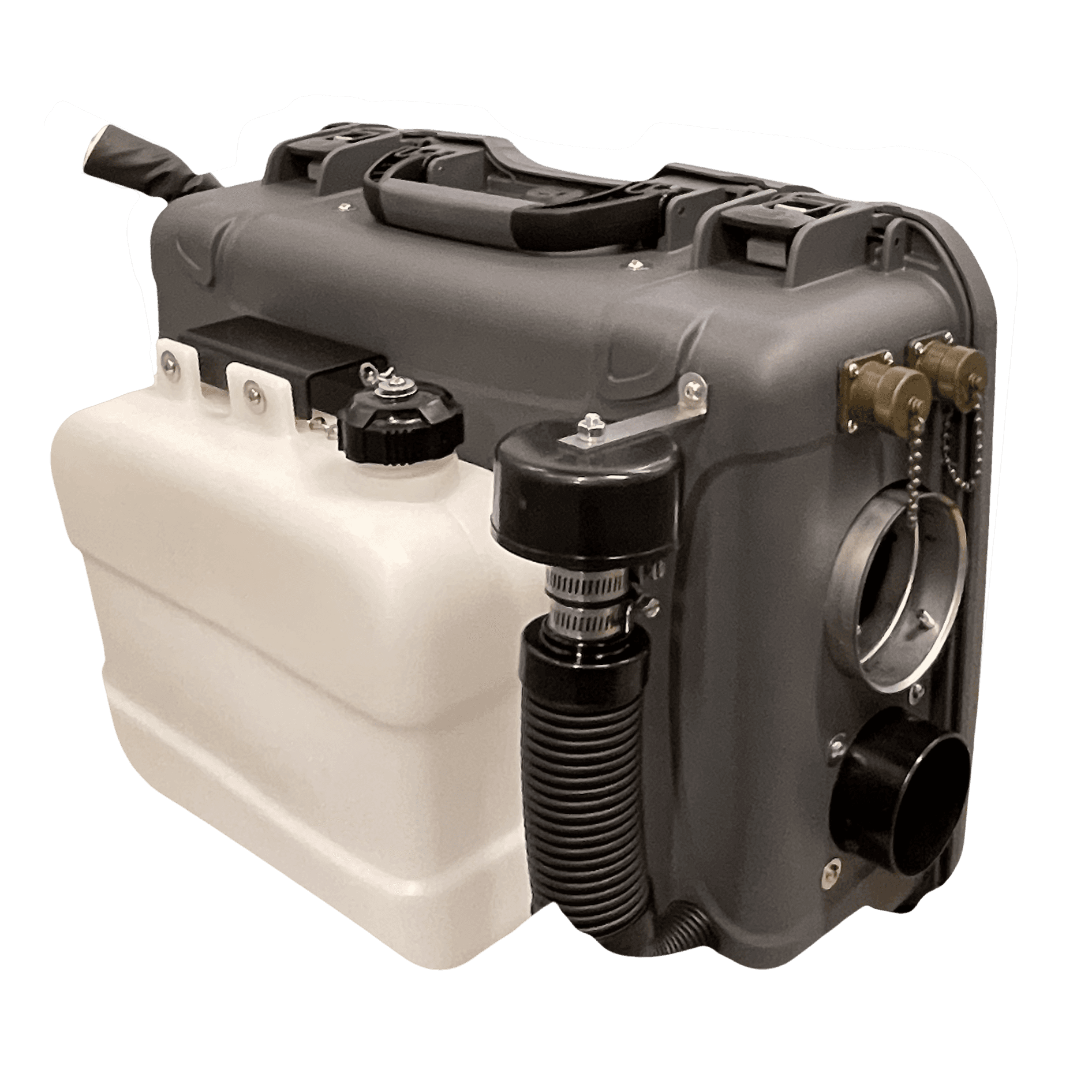

Built-in Multi-Fuel Tank
Built-in Multi-Fuel Tank
Integrated 7-litre tank supports diesel, kerosene, and JP-8, delivering up to 15 hours of continuous runtime.
Integrated 7-litre tank supports diesel, kerosene, and JP-8, delivering up to 15 hours of continuous runtime.
Engineered for Mission Endurance
Extreme All-Weather Build
Engineered for punishing field transport and deployment; ruggedized to operate reliably in Arctic, alpine, and desert conditions.
MIL-Spec Connectors
Sealed, ingress-protected connectors ensure secure, mission-ready power and control links in all environments.
Arctic-Grade Cabling
Heavy-duty cabling designed to maintain flexibility and performance under extreme cold, abrasion, and repeated handling.
Built-in Multi-Fuel Tank
Integrated 7-litre tank supports diesel, kerosene, and JP-8, delivering up to 15 hours of continuous runtime.
Specifications
Heat Capacity
3,400-13,600 BTU/h (1.0-4.0 kW)
Air Flow Rate
41-99 ft3/min (70-168 m3/h)
Power
12-17 V DC; 100-240 V AC
Power Consumption
10.0-57.0 W
Fuel Type
Diesel, Kerosene, JP-8
Fuel Capacity
7 L
Fuel Consumption
0.03-0.13 gal/h (0.12-0.5 l/h)
Weight
33.0 lb (15.0 kg)
Dimensions
24.5 x 18 x 13 in (622 x 457 x 330 mm)
Specifications
Heat Capacity
3,400-13,600 BTU/h (1.0-4.0 kW)
Air Flow Rate
41-99 ft3/min (70-168 m3/h)
Power
12-17 V DC; 100-240 V AC
Power Consumption
10.0-57.0 W
Fuel Type
Diesel, Kerosene, JP-8
Fuel Capacity
7 L
Fuel Consumption
0.03-0.13 gal/h (0.12-0.5 l/h)
Weight
33.0 lb (15.0 kg)
Dimensions
24.5 x 18 x 13 in (622 x 457 x 330 mm)
