CANHEAT 8D

CANHEAT 8D

CANHEAT 8D

CANHEAT 8D

CANHEAT 8D

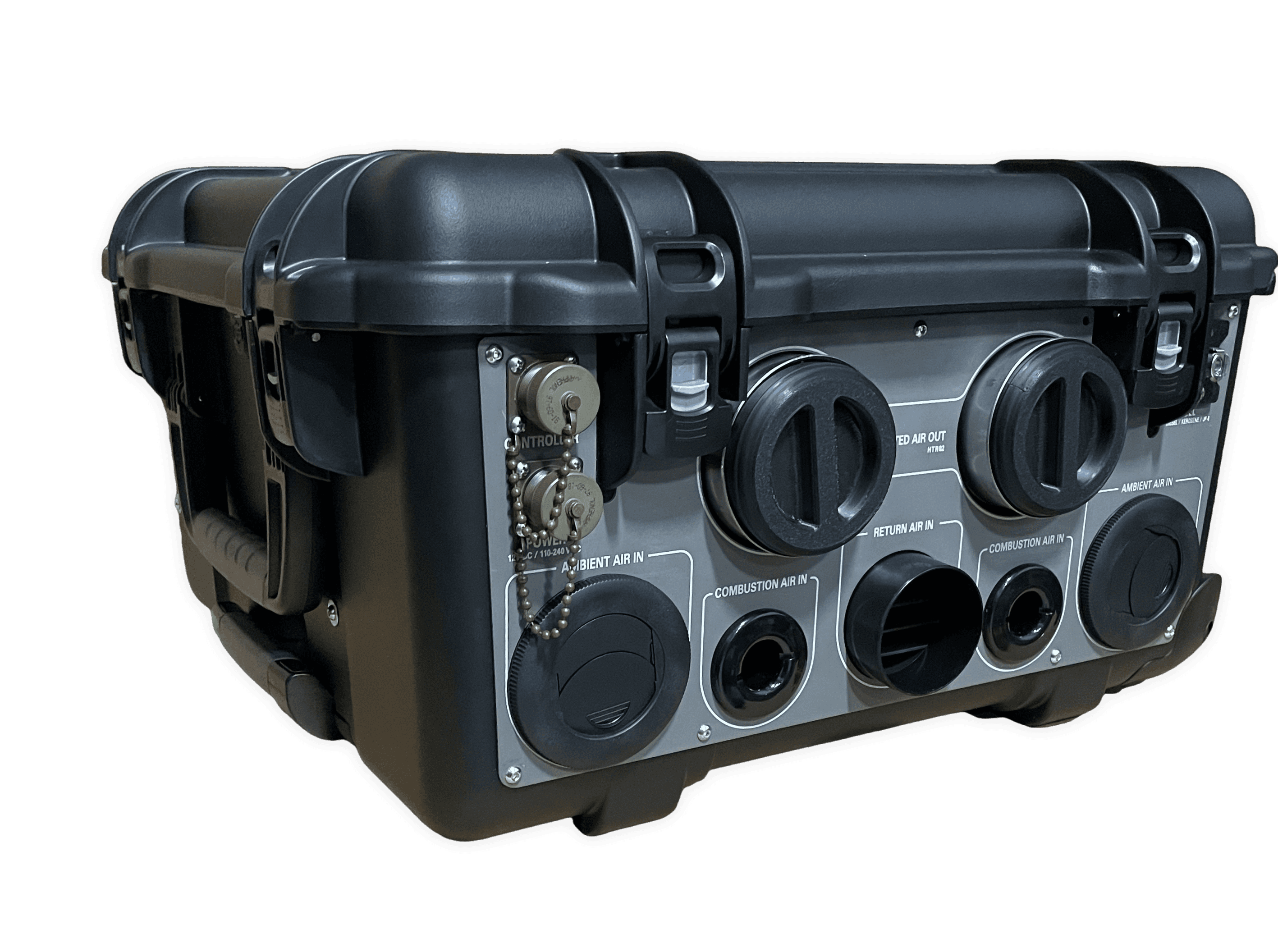

CANHEAT 8D is intended for users building or sustaining field infrastructure rather than heating only a single small shelter. Its higher output and dual‑airflow layout allow operators to support larger tents, medical treatment spaces, linked shelter systems, and evacuation areas from one dedicated heater platform. In the family structure, 8D is the clearest answer for users who know they have already outgrown the footprint, heating volume, or runtime logic of a smaller tactical shelter package.

• High‑capacity 8.0 kW system for large or linked shelters

• Dual outlet design for heating multiple tents from one heater core

• External 12 V DC or 100–240 V AC power for flexible deployment on grid or off‑grid

• Compatible with JP‑8, diesel, and kerosene via external bulk fuel supply

• Built for continuous operation in arctic, alpine, and desert environments

compact & portable

16kg man-portable

multi-source power

240 VAC, 12 VDC & BB-2590

flexible fuel options

diesel, kerosene, JP-8

stealthy & standalone

low heat & noise signature

compact & portable

33 kg portable

multi-source power

12 V DC /100–240 V AC

flexible fuel options

Diesel, Kerosene, JP-8

stealthy & standalone

low heat & noise signature

Engineered for Mission Endurance

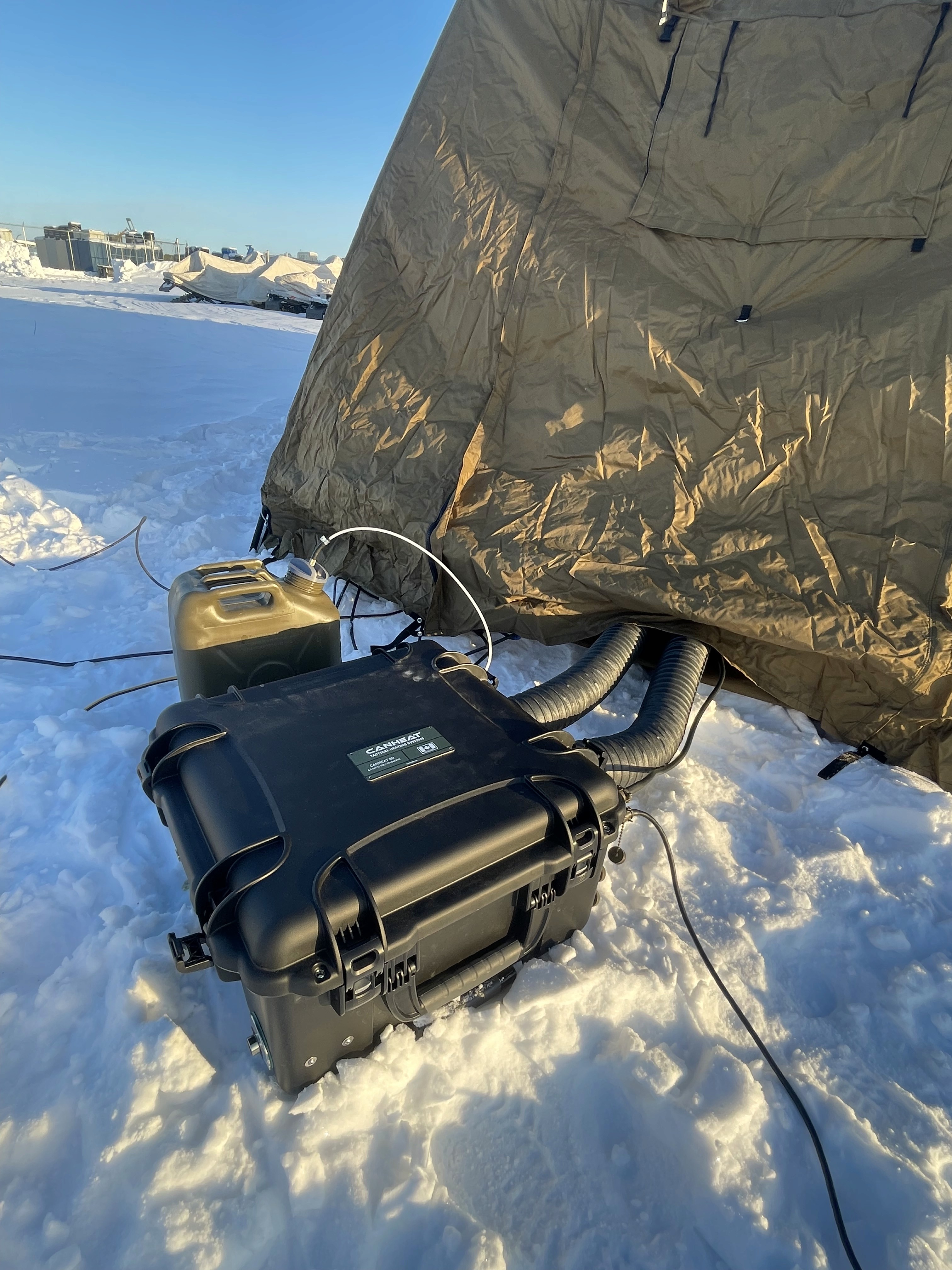

Large Shelter Support

Designed for command, medical, and evacuation infrastructure.

Large Shelter Support

Designed for command, medical, and evacuation infrastructure.

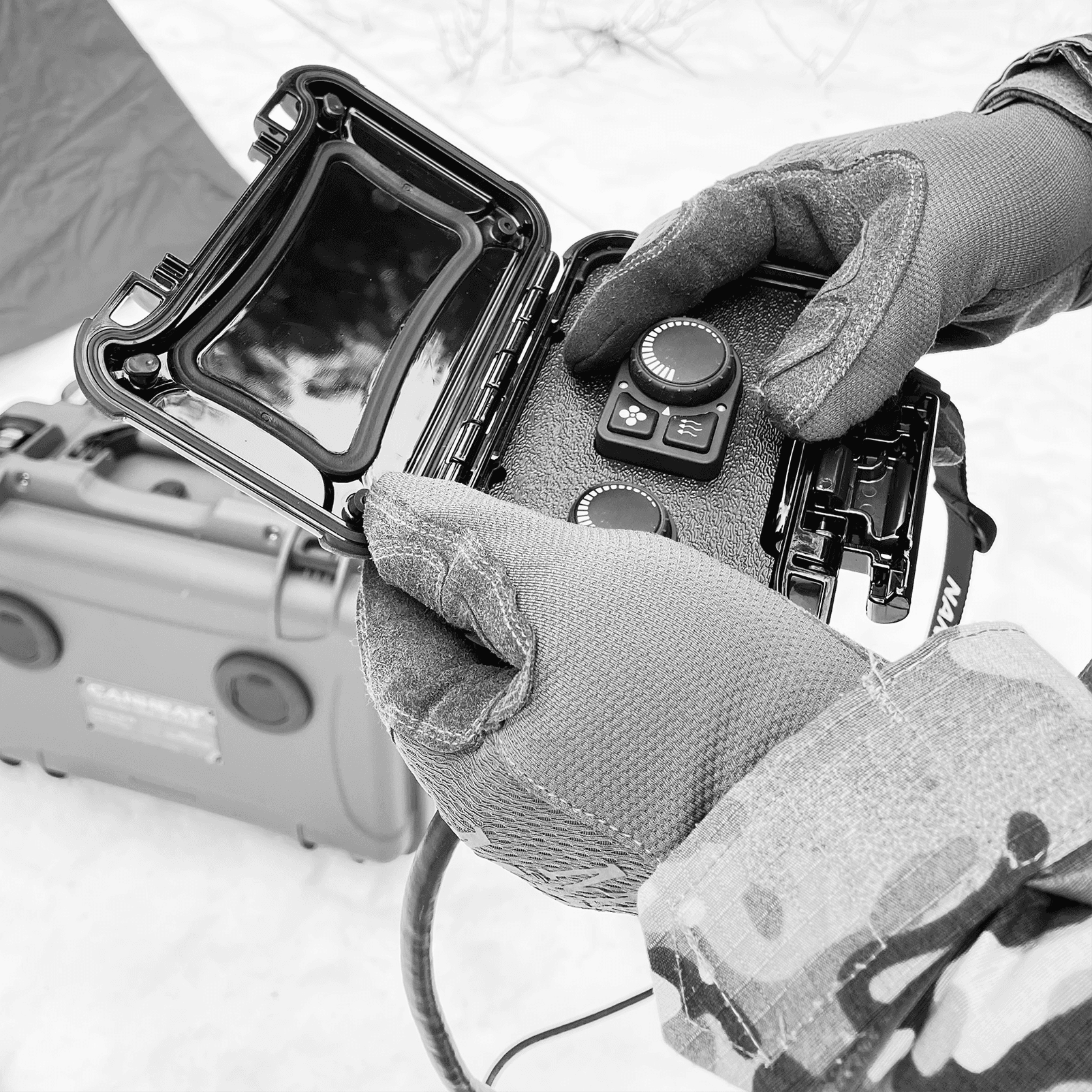

Extended Range Controller

Ultra Secure Water-tight Controller Box & MIL-Spec Cables to outlast extreme conditions and handling.

Extended Range Controller

Ultra Secure Water-tight Controller Box & MIL-Spec Cables to outlast extreme conditions and handling.

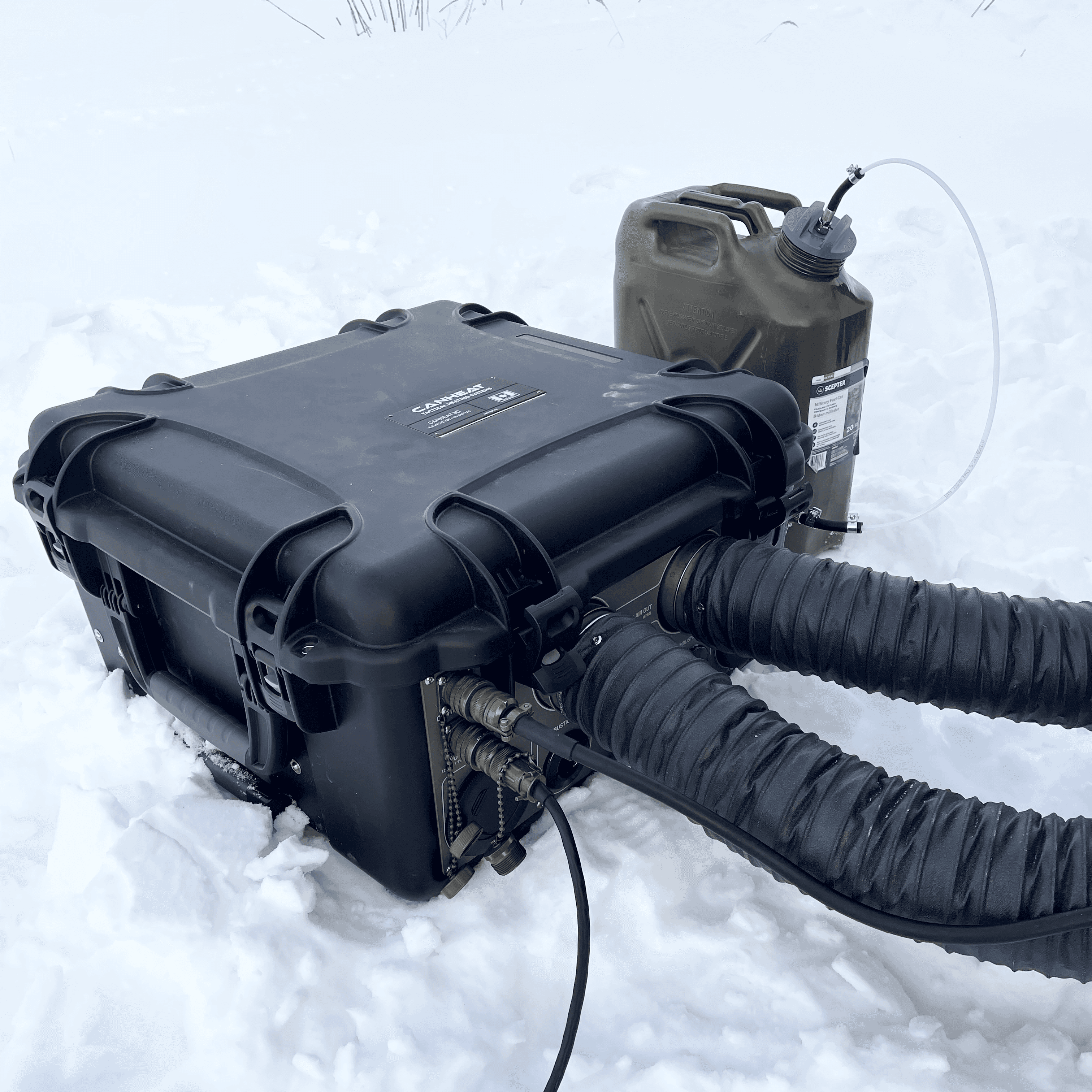

External Fuel Endurance

Supports long‑duration operation from bulk fuel supply.

External Fuel Endurance

Supports long‑duration operation from bulk fuel supply.

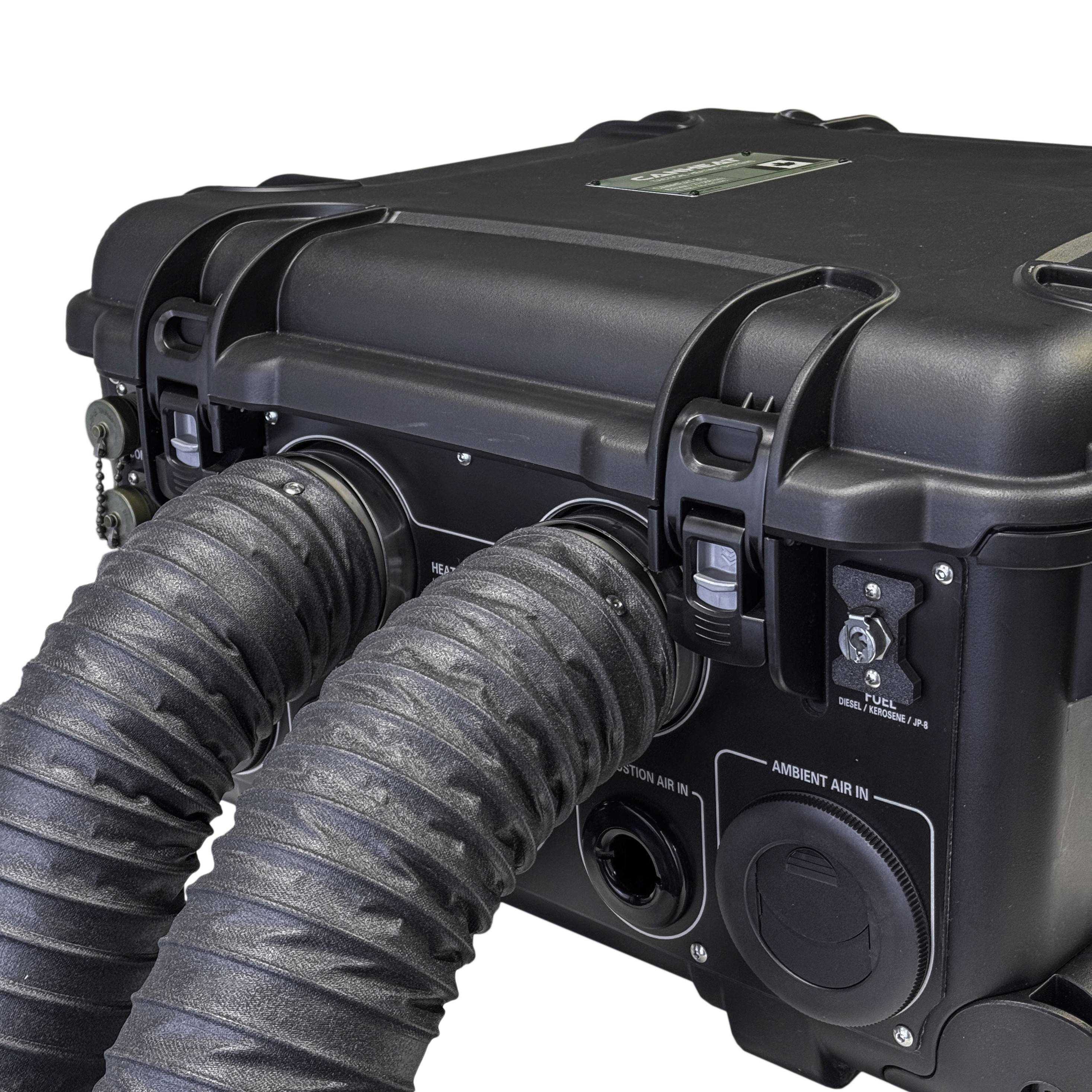

Dual Airflow Delivery

Two high‑volume outlet paths for flexible routing.

Dual Airflow Delivery

Two high‑volume outlet paths for flexible routing.

Engineered for Mission Endurance

Large Shelter Support

Designed for command, medical, and evacuation infrastructure.

Extended Range Controller

Ultra Secure Water-tight Controller Box & MIL-Spec Cables to outlast extreme conditions and handling.

External Fuel Endurance

Supports long‑duration operation from bulk fuel supply.

Dual Airflow Delivery

Two high‑volume outlet paths for flexible routing.

Specifications

Heat Capacity

2x 13,600 BTU/h (2x 4.0 kW)

Air Flow Rate

2 x 98 ft3/min (2 x 168 m3/h)

Power

12V DC; 100-240 V AC

Power Consumption

2x 10.0-57.0 W

Fuel Type

Diesel, Kerosene, JP-8

Fuel Capacity

External source only

Fuel Consumption

2x 0.03-0.13 gal/h (2x 0.12-0.5 l/h)

Weight

72.75 lb (33.0 kg)

Dimensions

24.8 x 25.6 x 25.2 in (630 × 650 × 340 mm)

Specifications

Heat Capacity

2x 13,600 BTU/h (2x 4.0 kW)

Air Flow Rate

2 x 98 ft3/min (2 x 168 m3/h)

Power

12V DC; 100-240 V AC

Power Consumption

2x 10.0-57.0 W

Fuel Type

Diesel, Kerosene, JP-8

Fuel Capacity

External source only

Fuel Consumption

2x 0.03-0.13 gal/h (2x 0.12-0.5 l/h)

Weight

72.75 lb (33.0 kg)

Dimensions

24.8 x 25.6 x 25.2 in (630 × 650 × 340 mm)
