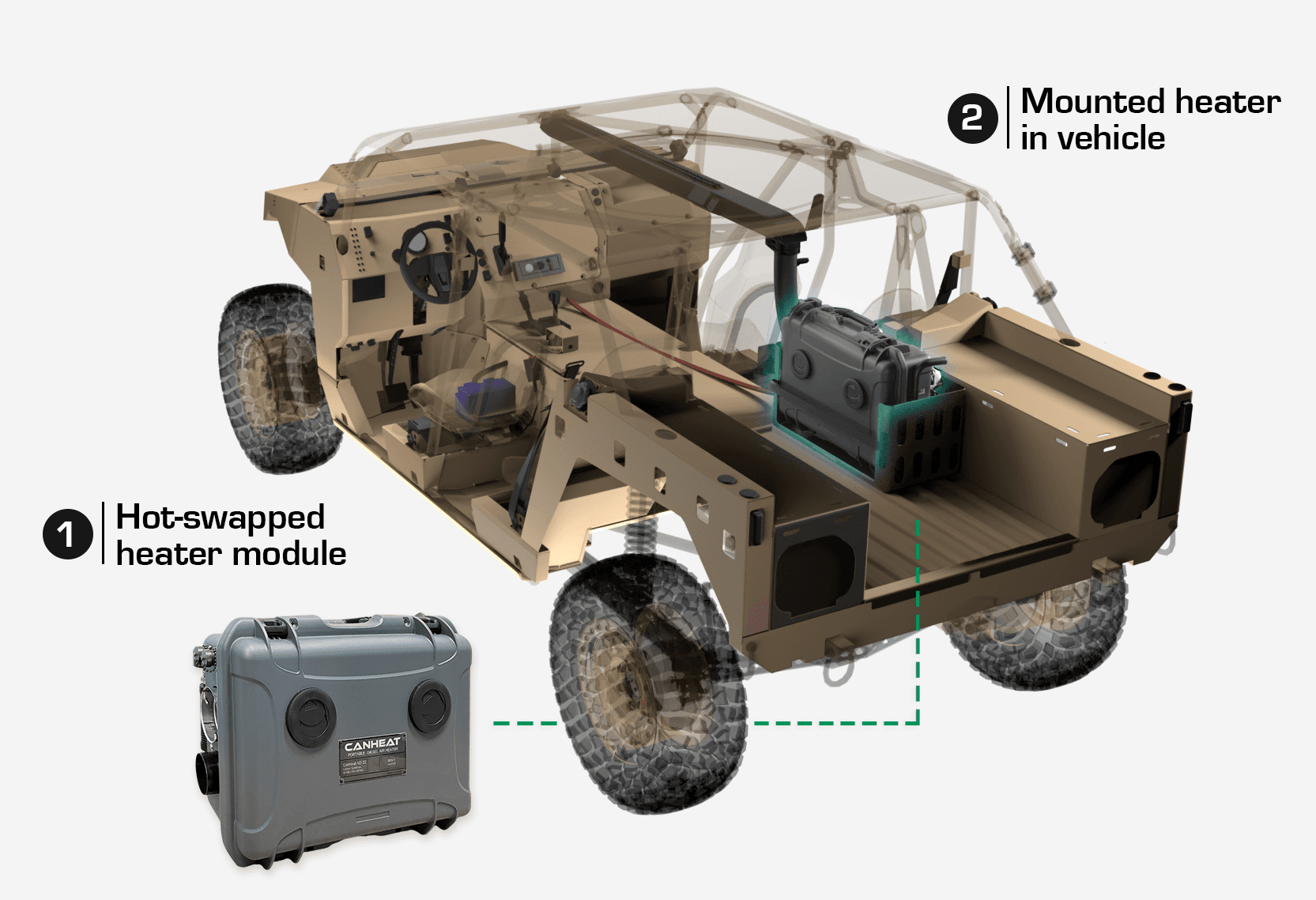

A vehicle-mounted heating system built for Ultra Light Tactical Vehicles such as Polaris DAGOR, Polaris MRZR, and GM Defense ISV. Compact and integrated, it delivers cab-safe heating, dashboard control, and rapid ducted airflow, with the flexibility to quick-disconnect for shelter use when required.

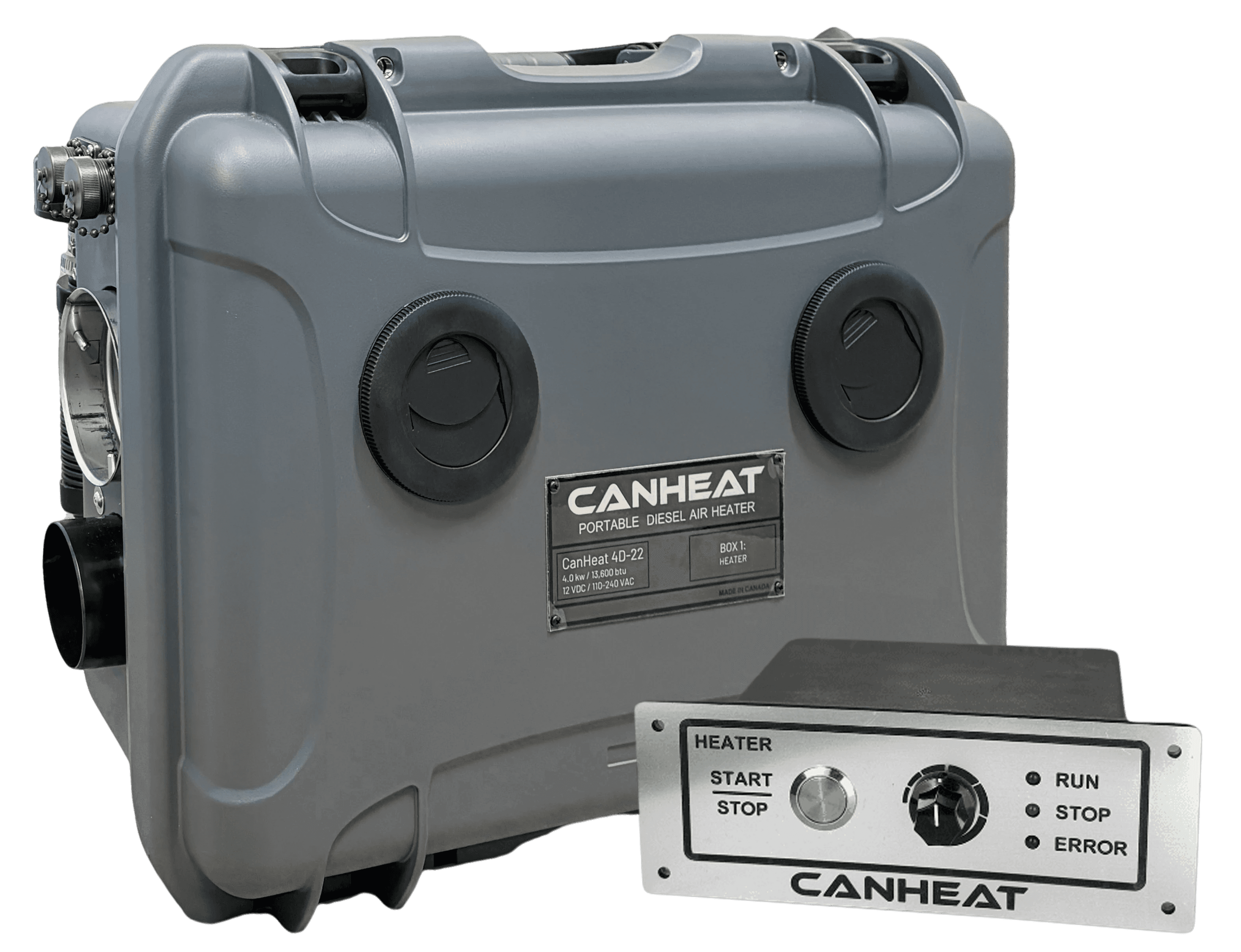

• Integrated vehicle unit with dashboard controls and quick-connect wiring loom
• Rugged mounting system designed for tactical and off-road vehicles
• Vibration-tested, dust-protected, and field-ready for continuous operations
• Compatible with onboard 12 V DC and external 100–240 V AC power inputs
Specifications
Heat Capacity
3,400-13,600 BTU/h (1.0-4.0 kW)
Air Flow Rate
41-99 ft3/min (70-168 m3/h)
Power
12-17 V DC; 100-240 V AC
Power Consumption
10.0-57.0 W
Fuel Type
Diesel, Kerosene, JP-8
Fuel Capacity
7 L
Fuel Consumption
0.03-0.13 gal/h (0.12-0.5 l/h)
Weight
33.0 lb (15.0 kg)
Dimensions
24.5 x 18 x 13 in (622 x 457 x 330 mm)
